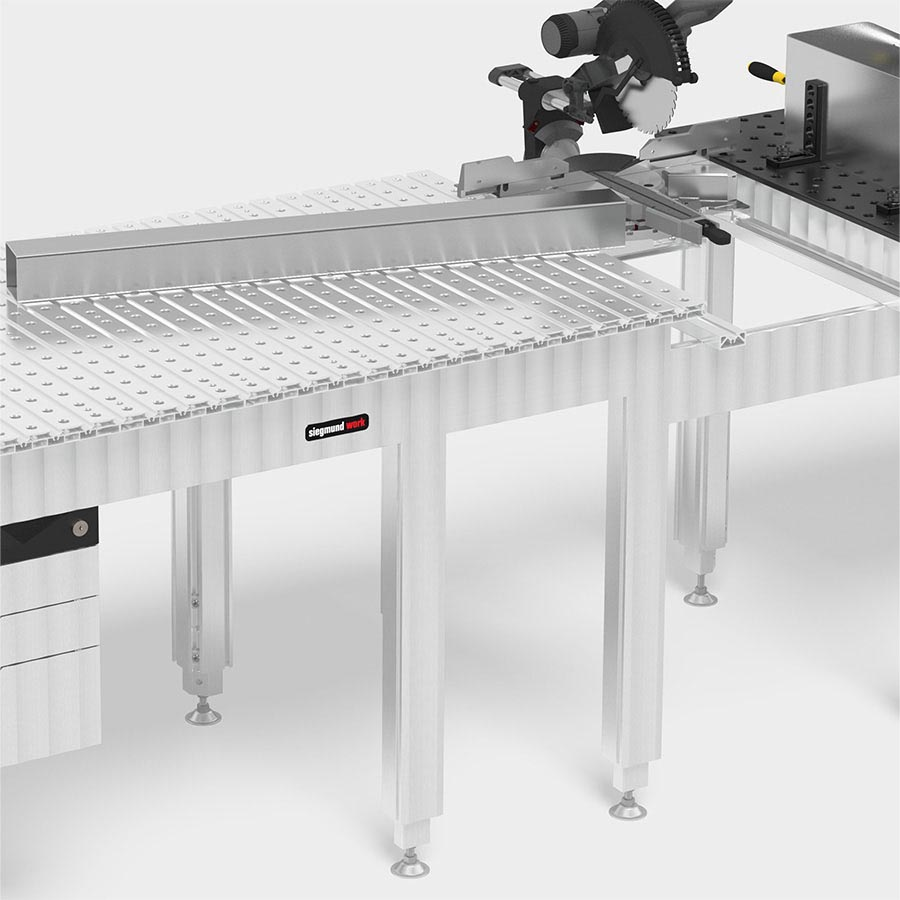

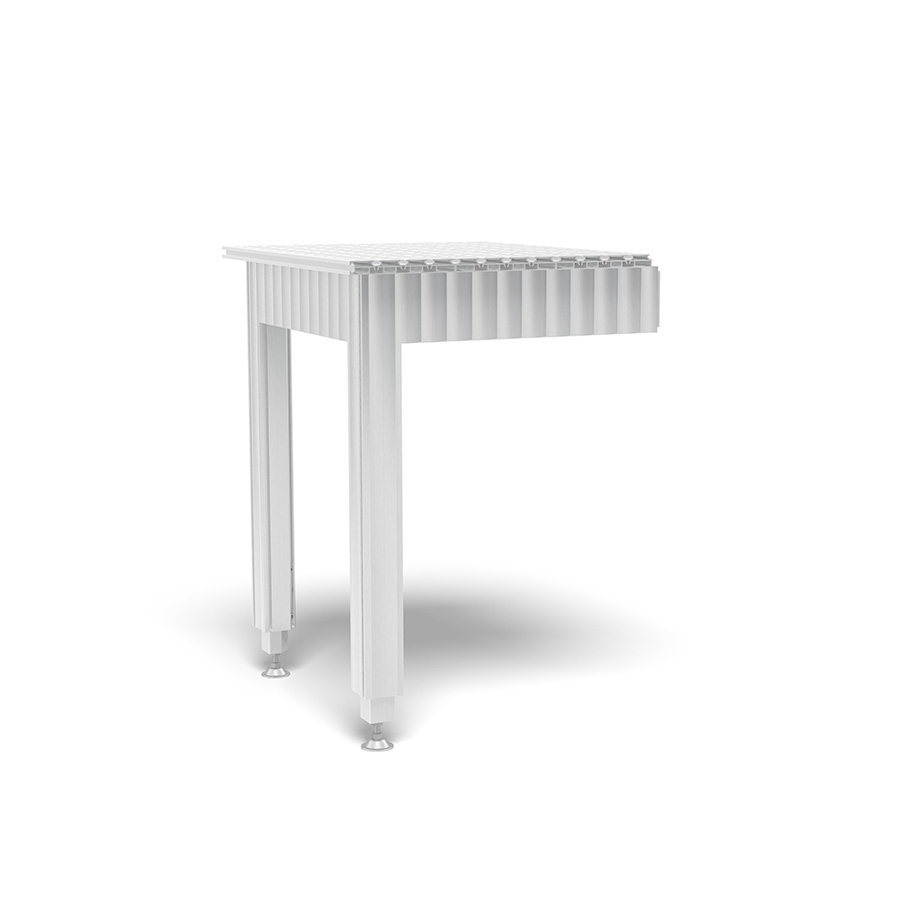

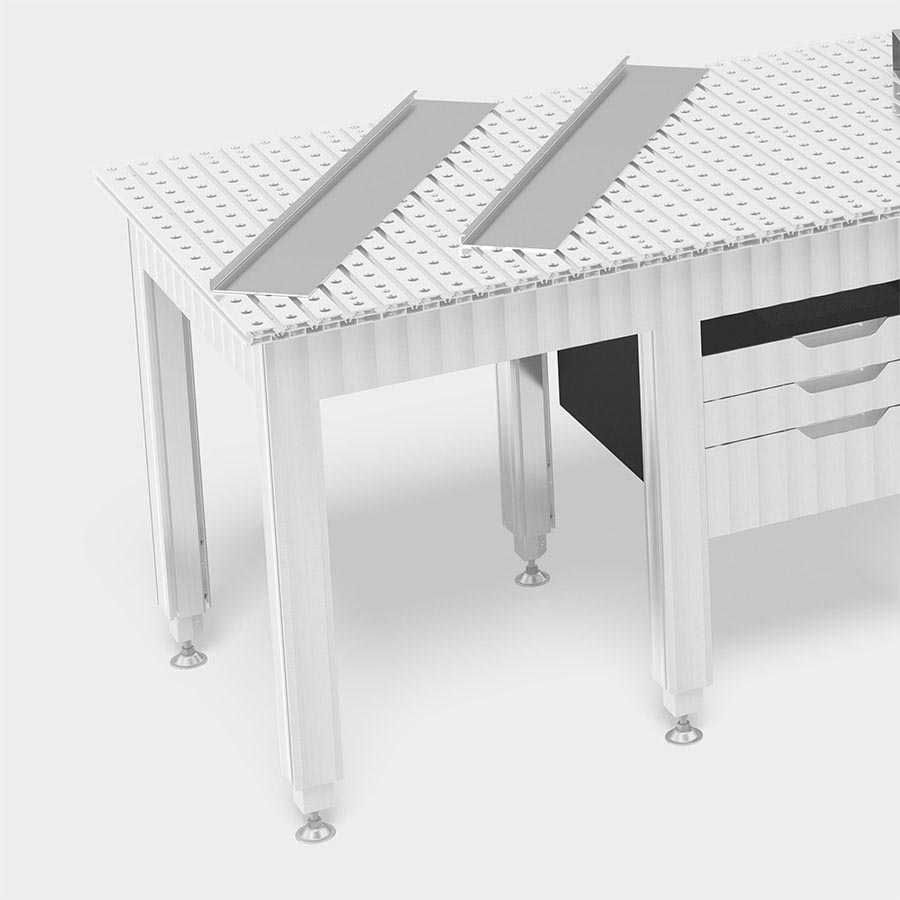

The 600x700 extension for workbenches with height adjustment is the ideal solution for extending your work surface by 600 mm and creating even more flexibility in your work area. This extension is specially designed for workbenches with height adjustment and can be adjusted within a height range of 800 to 975 mm.
The surface of the extension is made of high-quality aluminum profiles with a material thickness of 24 mm. It is equipped with 16 mm diameter holes at 50 mm intervals and hexagon slots (HX8), which are also arranged at 50 mm intervals. These features enable precise and secure fastening of tools and accessories.
With dimensions of 600 mm in length, 700 mm in width and 800 mm in height, the extension offers additional space and stability. It weighs 19 kg and is supplied with the necessary mounting material. Be sure to check the base frame width of your workbench to ensure compatibility.
When clamping aluminum parts, make sure to tighten the bolts only hand-tight to avoid possible damage. This extension not only improves your work surface, but also significantly improves the versatility and functionality of your workbench.
Quick Facts:
- for height adjustable workbench
- Extension of the work surface by 600 mm
- Mounting material included in the delivery
- Height-adjustable (800-975 mm)
- Surface made of aluminum table profiles
- Borehole Ø 16 mm
- Borehole spacing 50 mm
- Hexagon slot HX8
- Hexagon slot spacing 50 mm
- When clamping aluminum parts, the bolts may only be tightened hand-tight.
- Please consider the base frame width of the workbench!
Technical data:
- Length 600 mm
- Width 700 mm
- Height 800 mm
- Material thickness 24 mm
- Weight 19 kg
| Category: | Extensions and accessories |
| SKU: | XA160607-H |
| Product family: | workbench |
| Material: | Aluminum |
| Product type: | Erweiterung |
| Shipping weight: | 19,00 kg |
| Item weight: | 19,00 kg |
| Dimensions ( Length × Width × Height ): | 60,00 × 70,00 × 80,00 cm |
