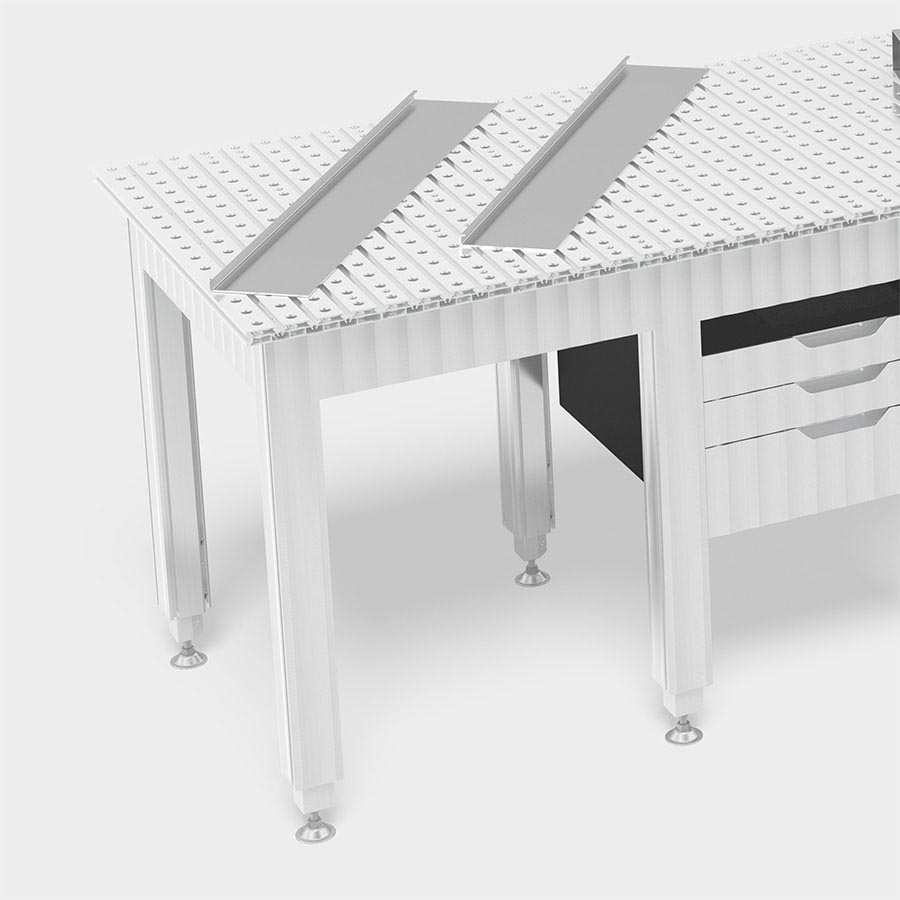

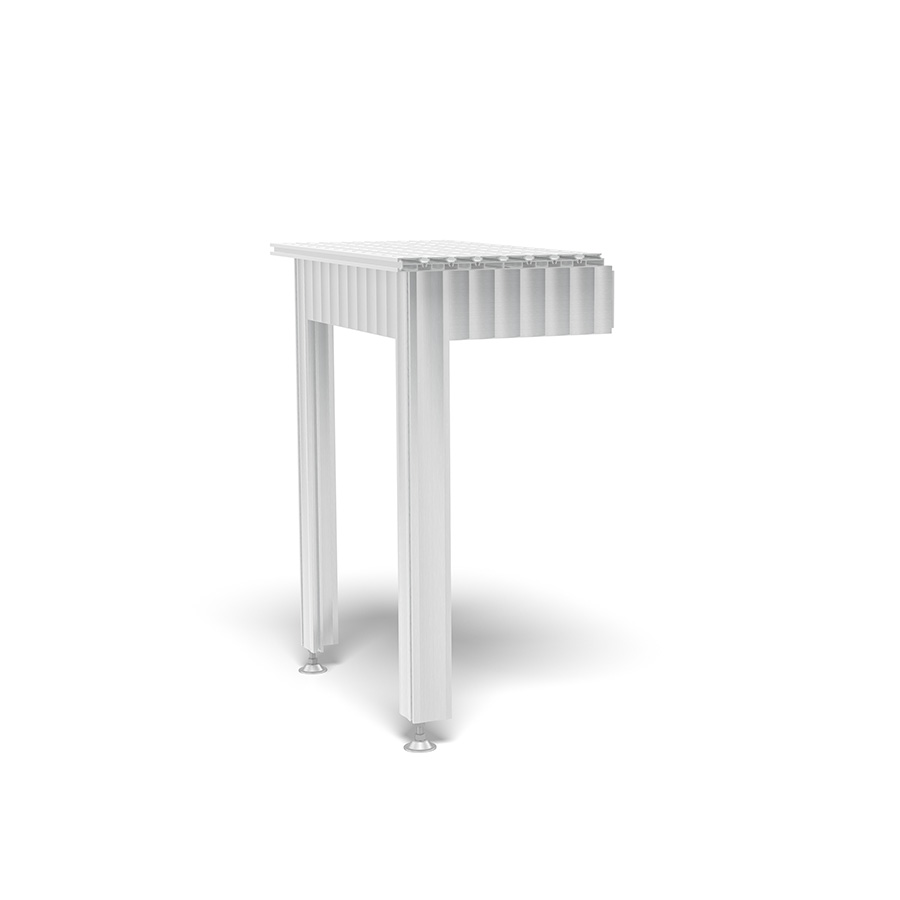

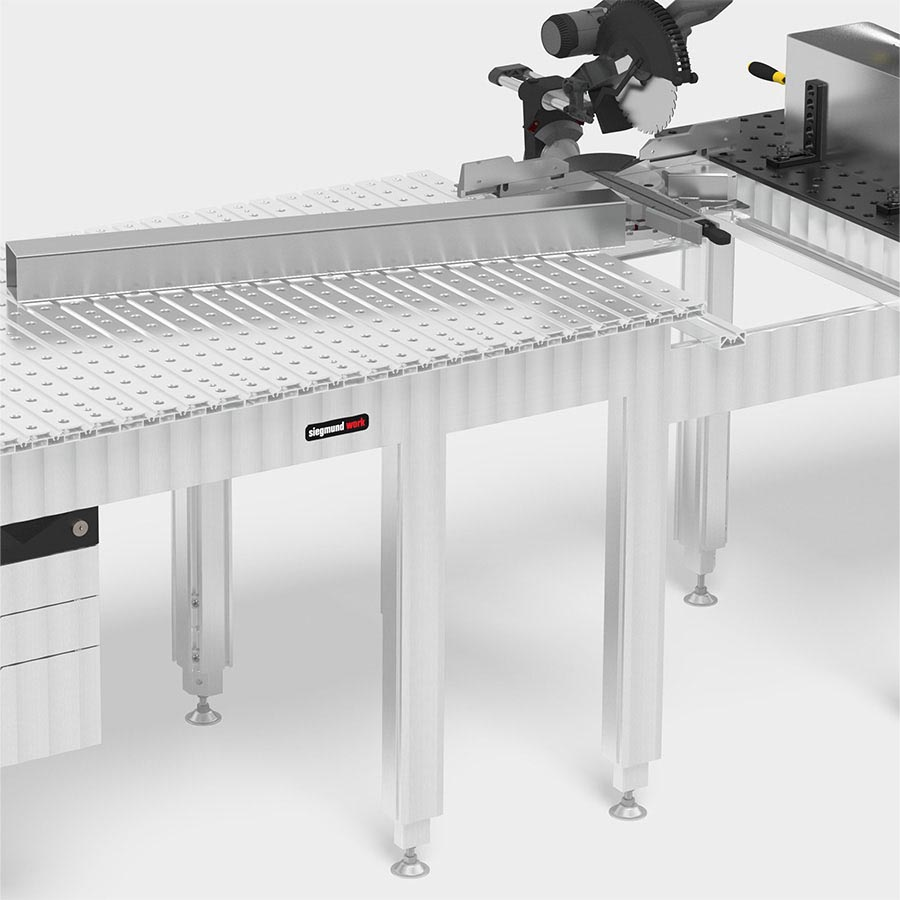

The extension for your workbench with aluminum table profiles offers an ideal solution for flexibly and efficiently increasing your work surface. The extension, which is available in 400 mm or 600 mm versions, can be easily attached to your existing workbench and allows you to create more space for your projects.
The work surface is made of robust aluminum table profiles that provide a stable and durable base. It is precisely finished and equipped with 16 mm diameter holes and a borehole spacing of 50 mm, which allows for versatile use. The extension is supplied with all the necessary mounting materials so that you can put it into operation immediately.
Optionally, you can equip the extension with height-adjustable feet, which allow you to adjust the height of the workbench between 800 mm and 975 mm. This allows you to optimally adjust the working height to your needs. When clamping aluminum parts, however, care should be taken to tighten the bolts only hand-tight to prevent damage to the materials. Also remember to take the base frame width of your workbench into account when planning to ensure optimum stability.
Quick Facts:
- for workbench without height adjustment
- Extension of the work surface by 400 mm
- Mounting material included in the delivery
- Surface made of aluminum table profiles
- Borehole Ø 16 mm
- Borehole spacing 50 mm
- Hexagon slot HX8
- Hexagon slot spacing 50 mm
- When clamping aluminum parts, the bolts may only be tightened hand-tight.
- Please consider the base frame width of the workbench!
Technical data:
- Length 400 mm
- Width 700 mm
- Height 900 mm
- Material thickness 24 mm
- Weight 14 kg
| Category: | Extensions and accessories |
| SKU: | XA160407-G |
| Product family: | workbench |
| Material: | Aluminum |
| Product type: | Erweiterung |
| Shipping weight: | 14,00 kg |
| Item weight: | 14,00 kg |
| Dimensions ( Length × Width × Height ): | 40,00 × 70,00 × 90,00 cm |
