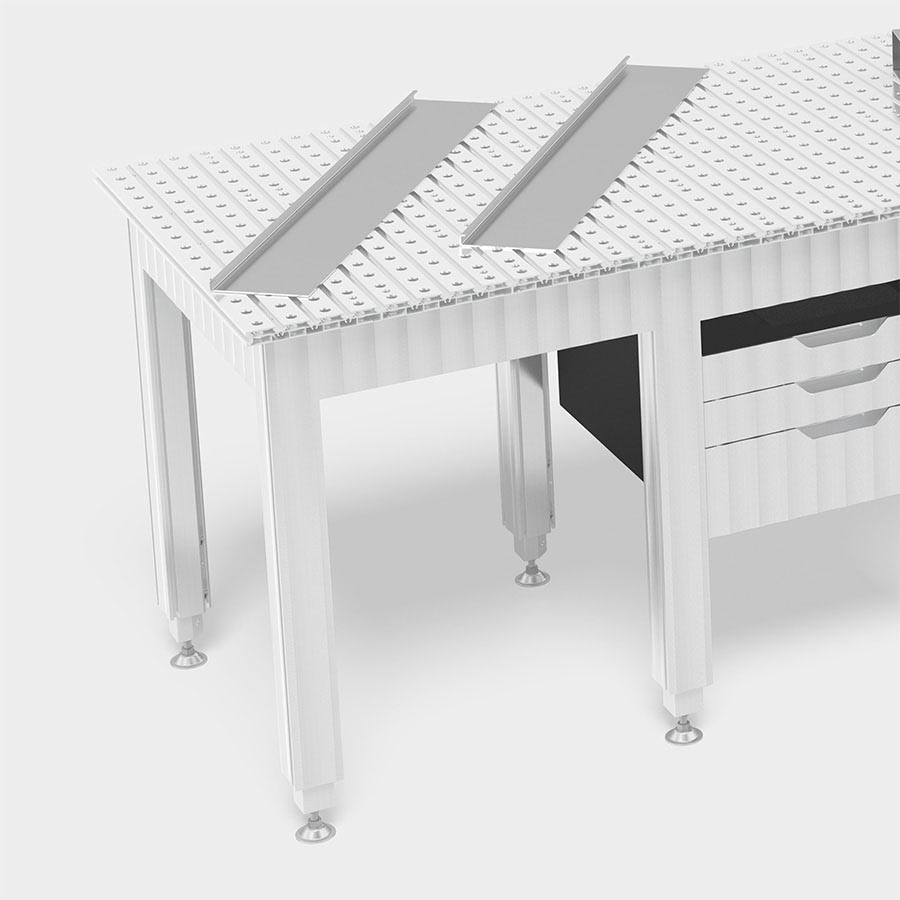

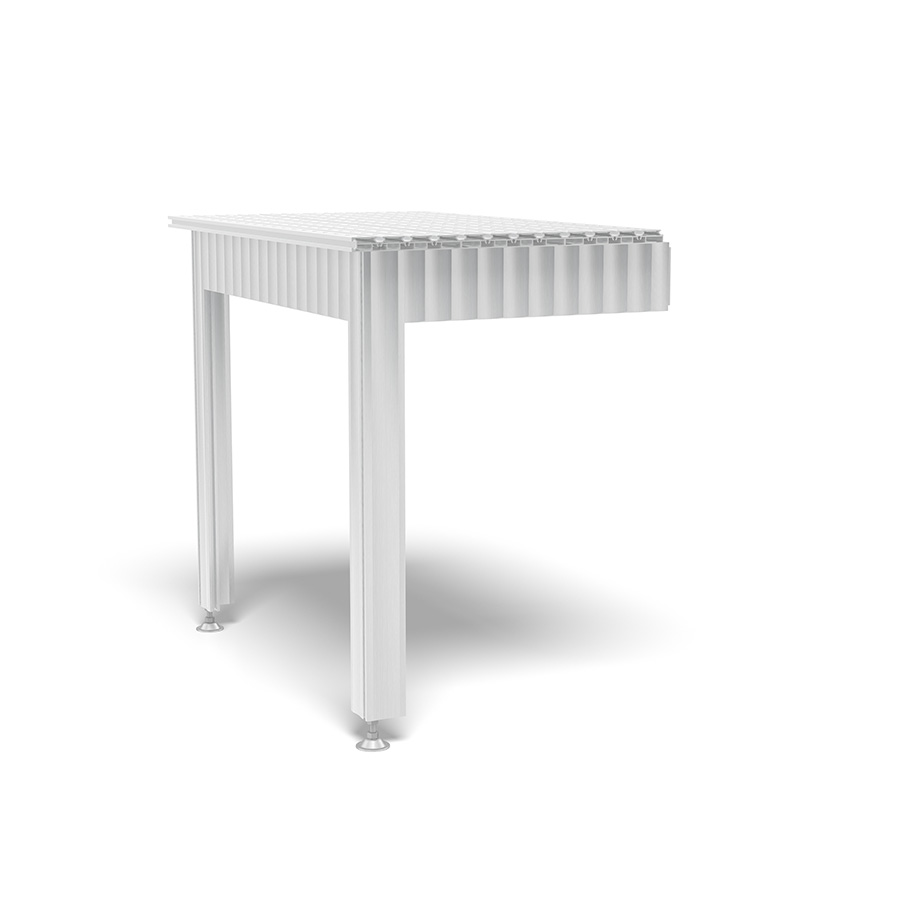

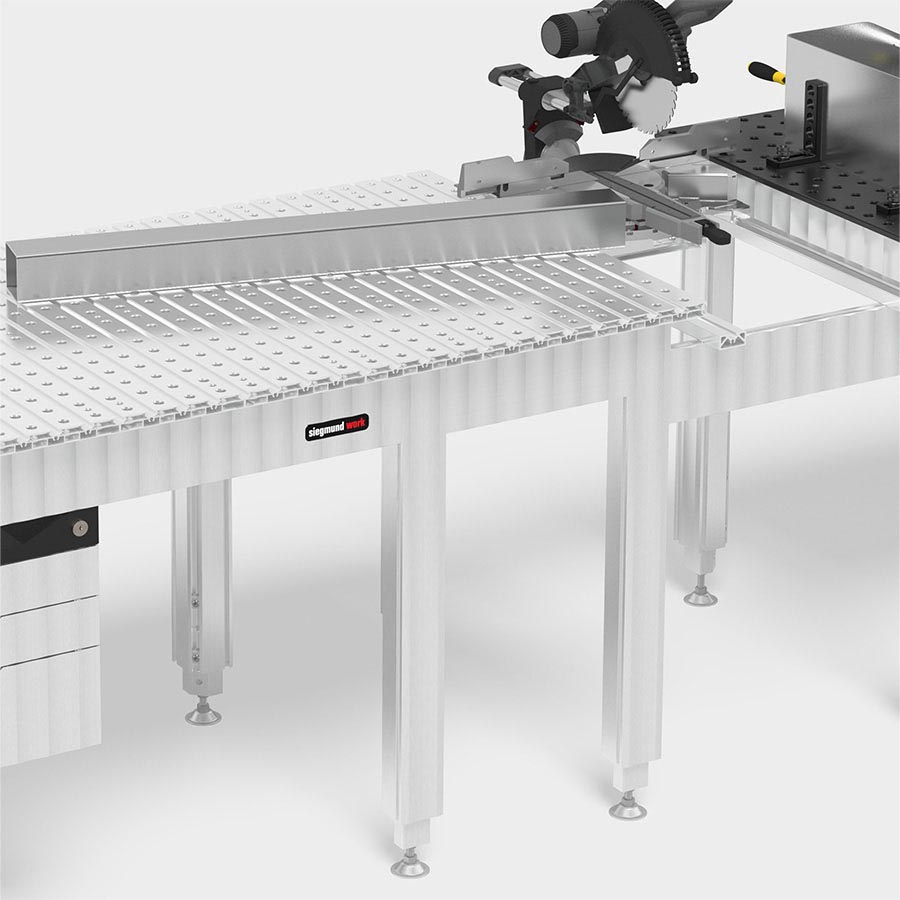

The 600x1000 extension for workbenches without height adjustment offers a generous extension of your work surface by 600 mm in depth and 1000 mm in width. This extension is specially designed for workbenches with the standard equipment and allows you to significantly increase your work surface.
The surface of this extension is made of robust aluminum profiles with a material thickness of 24 mm. The top is equipped with 16 mm diameter holes spaced 50 mm apart and hexagon slots (HX8) at the same distance. These features support the flexible and precise attachment of tools and accessories.
The weight of the extension is 24 kg and the necessary mounting material is included in the scope of delivery. Please note the base frame width of your workbench to ensure that the extension is compatible. When clamping aluminum parts, the bolts should only be hand-tightened to prevent damage.
Quick Facts:
- for workbench without height adjustment
- Extension of the work surface by 600 mm
- Mounting material included in the delivery
- Surface made of aluminum table profiles
- Borehole Ø 16 mm
- Borehole spacing 50 mm
- Hexagon slot HX8
- Hexagon slot spacing 50 mm
- When clamping aluminum parts, the bolts may only be tightened hand-tight.
- Please consider the base frame width of the workbench!
Technical data:
- Length 600 mm
- Width 1000 mm
- Height 900 mm
- Material thickness 24 mm
- Weight 24 kg
| Category: | Extensions and accessories |
| SKU: | XA160610-G |
| Product family: | workbench |
| Material: | Aluminum |
| Product type: | Erweiterung |
| Shipping weight: | 24,00 kg |
| Item weight: | 24,00 kg |
| Dimensions ( Length × Width × Height ): | 60,00 × 100,00 × 90,00 cm |
