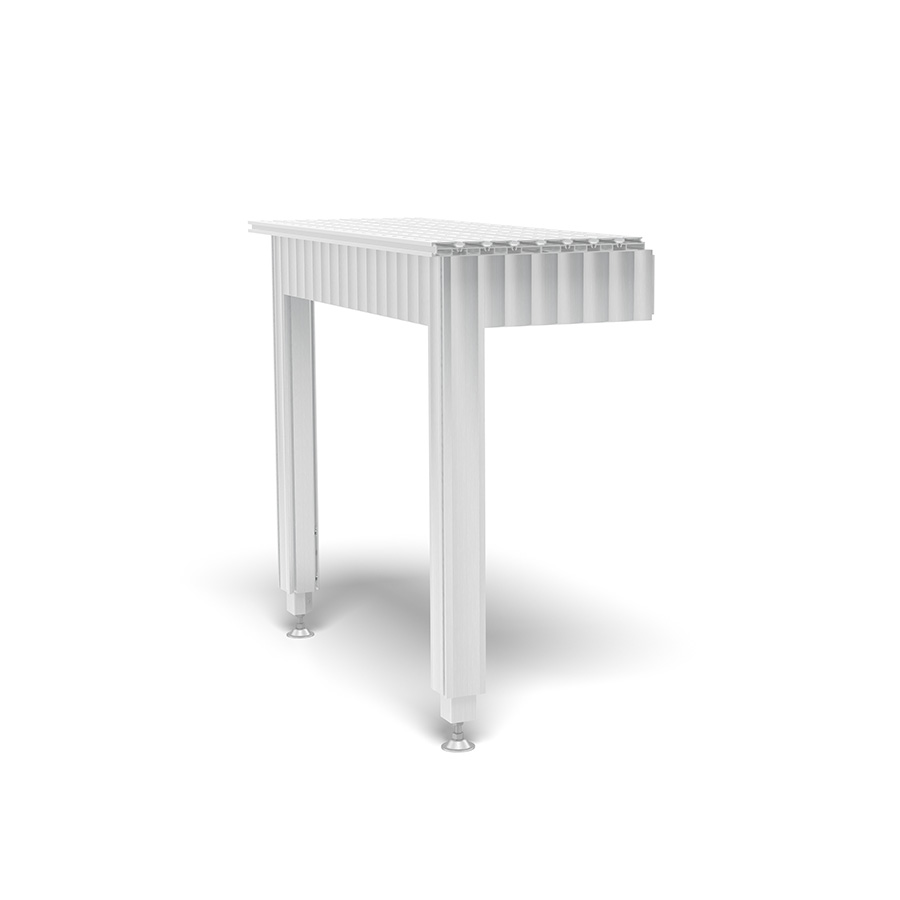

The 400x1000 extension for height-adjustable workbenches offers an ideal way to extend your work surface by 400 mm. This extension is specially designed for height-adjustable workbenches and can be easily integrated into your existing workbench.
The work surface is made of robust aluminum profiles with a material thickness of 24 mm. It is equipped with 16 mm diameter holes at 50 mm spacing and hexagon slots (HX8) at the same spacing to allow for versatile mounting options. The extension is height-adjustable and can be adjusted to a working height of 800 to 975 mm, providing additional flexibility.
The necessary mounting material is included and the base frame width of your workbench should be checked before installation to ensure compatibility. When clamping aluminum parts, be sure to only hand-tighten the bolts to prevent damage.
Measuring 400 mm long, 1000 mm wide and 800 mm high and weighing 19 kg, this extension provides a stable and reliable extension to your workbench, significantly increasing your work options.
Quick Facts:
- for height adjustable workbench
- Extension of the work surface by 400 mm
- Mounting material included in the delivery
- Height-adjustable (800-975 mm)
- Surface made of aluminum table profiles
- Borehole Ø 16 mm
- Borehole spacing 50 mm
- Hexagon slot HX8
- Hexagon slot spacing 50 mm
- When clamping aluminum parts, the bolts may only be tightened hand-tight.
- Please consider the base frame width of the workbench!
Technical data:
- Length 400 mm
- Width 1000 mm
- Height 800 mm
- Material thickness 24 mm
- Weight 19 kg
| Category: | Extensions and accessories |
| SKU: | XA160410-H |
| Product family: | workbench |
| Material: | Aluminum |
| Product type: | Erweiterung |
| Shipping weight: | 19,00 kg |
| Item weight: | 19,00 kg |
| Dimensions ( Length × Width × Height ): | 40,00 × 100,00 × 80,00 cm |
