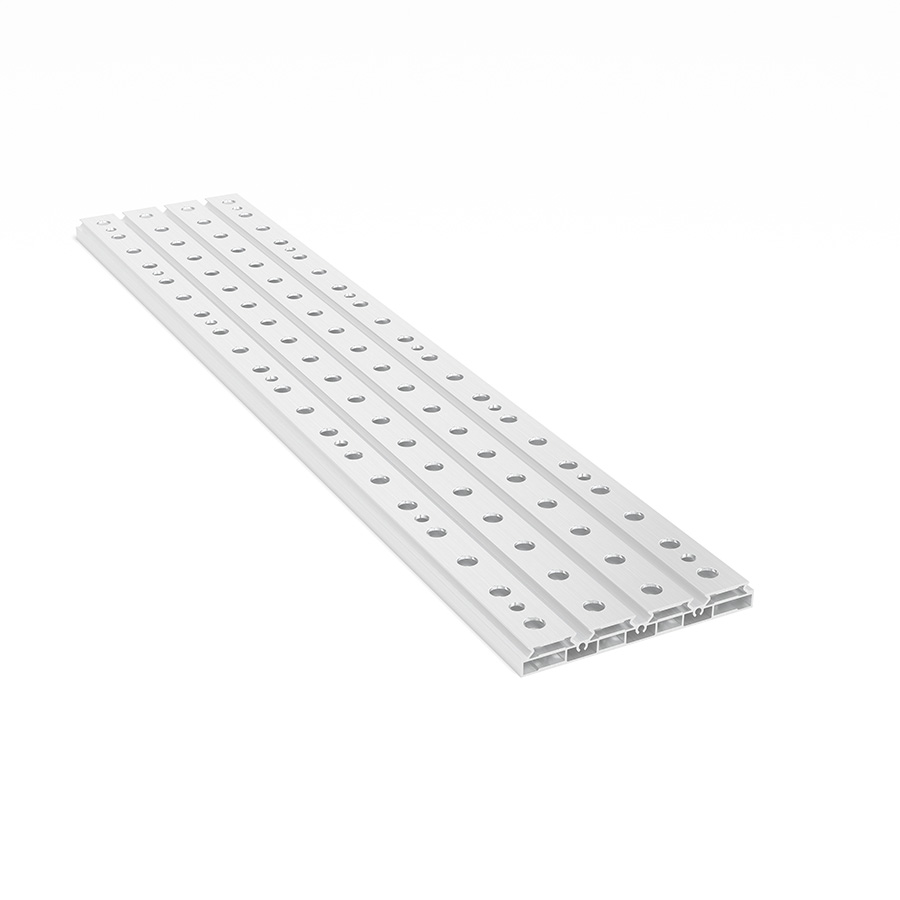

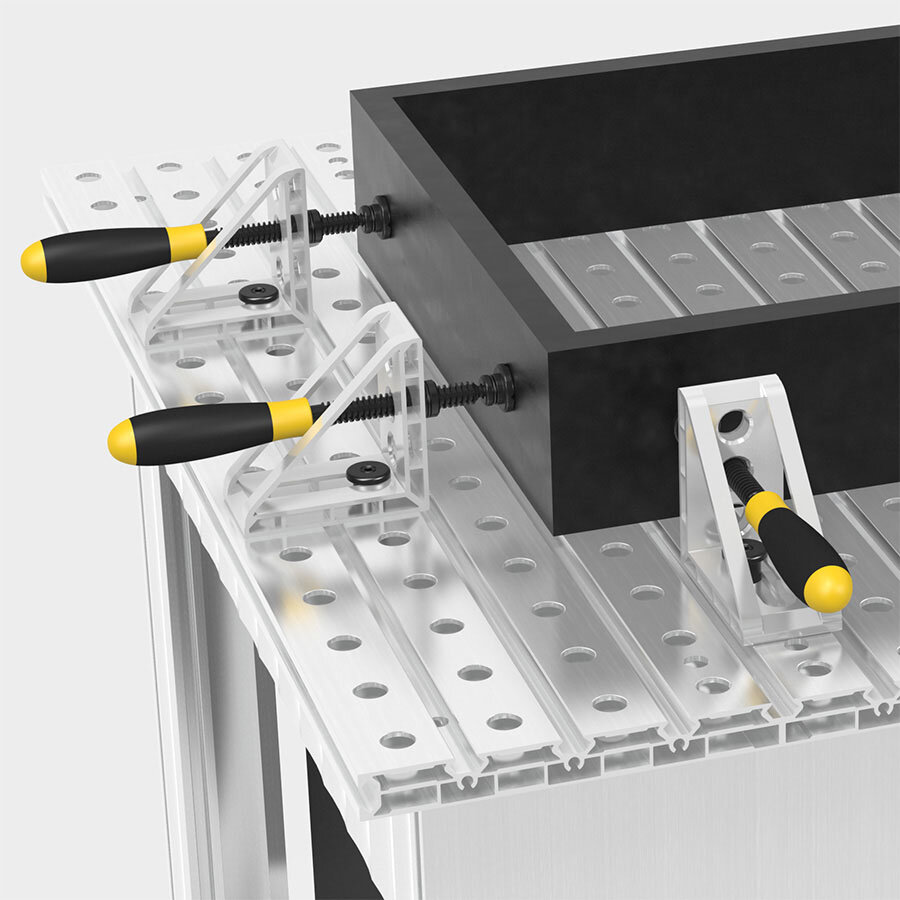

The Aluminum table end profile 1000 is an ideal addition to your workbench to create a professional and stable end edge. With a length of 1000 mm and a width of 200 mm, this profile is ideal for larger workbenches or extended work surfaces.
The profile has an outer design and offers versatile fastening options thanks to precise 16 mm diameter boreholes arranged at 50 mm spacing. In addition, it has hexagon slots (HX8), which are also positioned at 50 mm spacing, and a lateral hexagon slot on one side. This enables flexible mounting and easy adaptation to your specific requirements.
With a material thickness of 24 mm and a weight of 4.15 kg, the profile offers the necessary robustness and stability. Please check the base frame width of your workbench during installation to ensure a perfect fit.
Quick Facts:
- Borehole Ø 16 mm
- Borehole spacing 50 mm
- Hexagon slot HX8
- Hexagon slot distance 50 mm
- outer profile
- with lateral hexagonal slot on one side
- Pay attention to the base frame width of the workbench!
Technical data:
- Length 1000 mm
- Width 200 mm
- Material thickness 24 mm
- Weight 4.15 kg
| Item information | Value |
|---|---|
| Category: | Extensions and accessories |
| SKU: | TAP161000 |
| Product family: | |
| Material: | |
| Product type: | |
| Shipping weight: | 4,15 kg |
| Item weight: | 4,15 kg |
| Dimensions ( Length × Width ): | 100,00 × 20,00 cm |
